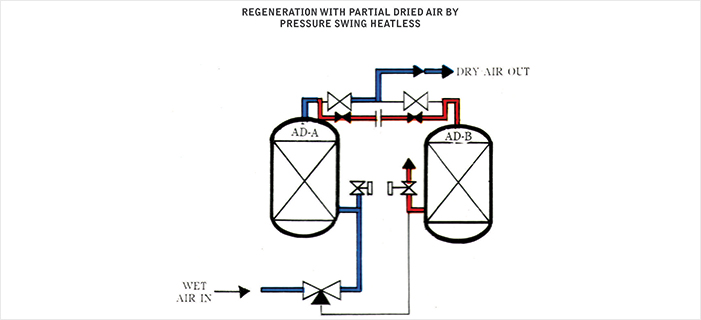

| The one of tower dries the air by adsorbing the moisture in air and supplies the dry air the other tower depressurizes to low pressure and about 10% of dry air regenerates the tower picking all moisture and venting to atmosphere. |
| |
| While there is cycle of adsorption in one tower for adsorption, the cycle in other tower is depressurizing, regeneration and pressurising to get ready for swing operation. |
| |
| The con of this type of regeneration is loss of about 10% of compressed air |
| |
| |
 |
|
 |
|
|
